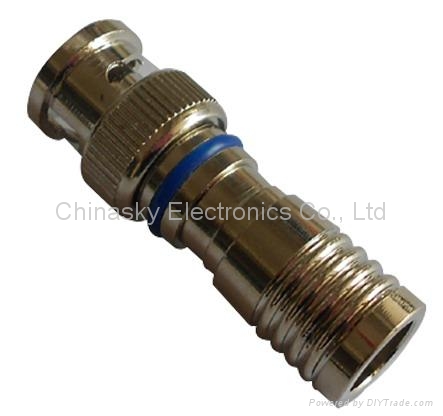

Water-proof BNC Male Compression Connector for RG59 Cable / CT5078S/RG59
Description:
Water-proof BNC Male Compression Connector for RG59 Cable
The BNC RG59 Compression Connector for Coax features 360-degree true radial compression.
Material:
Body—zinc alloy, nickel plated
Center pin—copper, gold plated
Net Weight: 13g/piece
Features:
Temperature range: - 40~ +155
Insulation resistance: ≥5000MΩ
Character impedance: 75Ω
Frequency range: 0~3GHZ
Disengage force: ≥0.6N
Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ
Durability: ≥ 500
Application:
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
