Passive CCTV HD PASSIVE VIDEO BALUN Compatible with all CVI,TVI,AHD,CVBS
Product Overview
Product Description

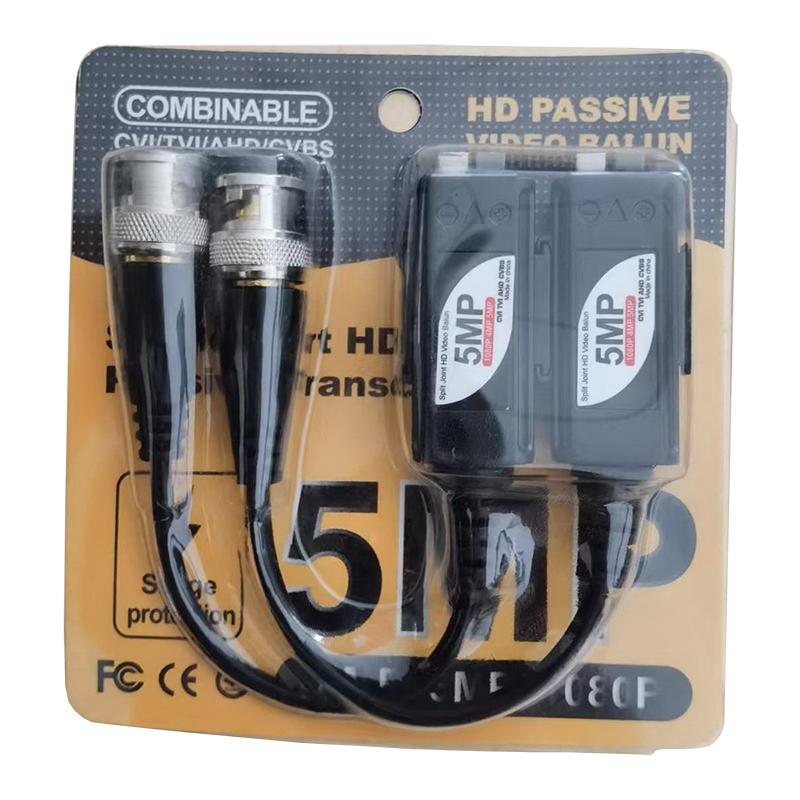

Passive CCTV HD PASSIVE VIDEO BALUN Compatible with all CVI,TVI,AHD,CVBS(VB103PH)
Features
Compatible with all CVI,TVI,AHD,CVBS
UP to 450m for 720P/1080P/3MP/4MP/5MP CVI
cameras.
UP to 250m for 720P/1080P/3MP/4MP/5MP TVI
cameras.
UP to 320m for 720P/960P/3MP/4MP/5MP AHD
cameras.
UP to 300m for CVBS cameras.
Support NTSC,PAL,and secam video formats.
No power required.
60db crosstalk and noise immunity.
Compact size and easy installation.
Innovative combinabie design.
Technical Specifications
Frequency response:DC to 60Mhz.
Attenuation:0.5db type.
CMRR:60db.
Connectors:Male BNC
Impedance:BNC:75ohmas Terminal:100ohms.
Working Temperature:-10℃to+70℃.
Storage Temperature:-30℃to+70℃.
Humidity:0 to 95%.
Material:ABS Plastic
Technical Specifications
| Model |
VB100WH |
VB103P |
VB106
VB106PH |
VB202EH
VB202PH
VB202PEH |
VB105EH
VB105PH
VB105PEH
VB107E
VB107P
VB107PR
|
VB102EH
VB102PH
VB102PEH
VB103EH
VB103PH
VB103PEH
|
VB203EH
VB203PH
VB203PEH
VB107EH
VB107PH
VB107PRH
VB109EH
VB109PH
|
VB303T&R
VB303T&R(P)
VB303T&RH(P) |
| UTP Connection |
Wire |
RJ45 |
Quick Connector |
Screw Terminal Blocks |
"Press-Fit" Terminal Blocks
|
| Built-in Video Ground Loop Isolator |
× |
× |
× |
× |
× |
× |
× |
√ |
| Innovative connectable design |
× |
× |
× |
× |
√ |
× |
√ |
√ |
| Video Format |
HD-CVI/TVI/AHD, CVBS |
| Frequency Response |
DC to 60MHz |
| Attenuation |
0.5dB typ |
| CMRR |
60 dB |
| Surge Protection |
4KV |
| ESD |
8KV |
| Impedance |
Coax, Male BNC |
75 ohms |
| Terminal Block |
100 ohms |
| Working Environment |
Working Temperature |
-10℃ to +50℃ |
| Storage Temperature |
-30℃ to +70℃ |
| Humidity |
0 to 95% |
Transmission
Distance |
720P CVI/TVI/AHD Cameras |
Up to 300m |
| 1080P CVI/TVI/AHD Cameras |
Up to 200m |
| 3MP, 4MP, 5MP CVI/TVI/AHD Cameras |
Up to 170m |
| Wire Type |
CAT5, CAT5E, CAT6 |
| Power |
No power required |
| Case |
ABS Plastic |
