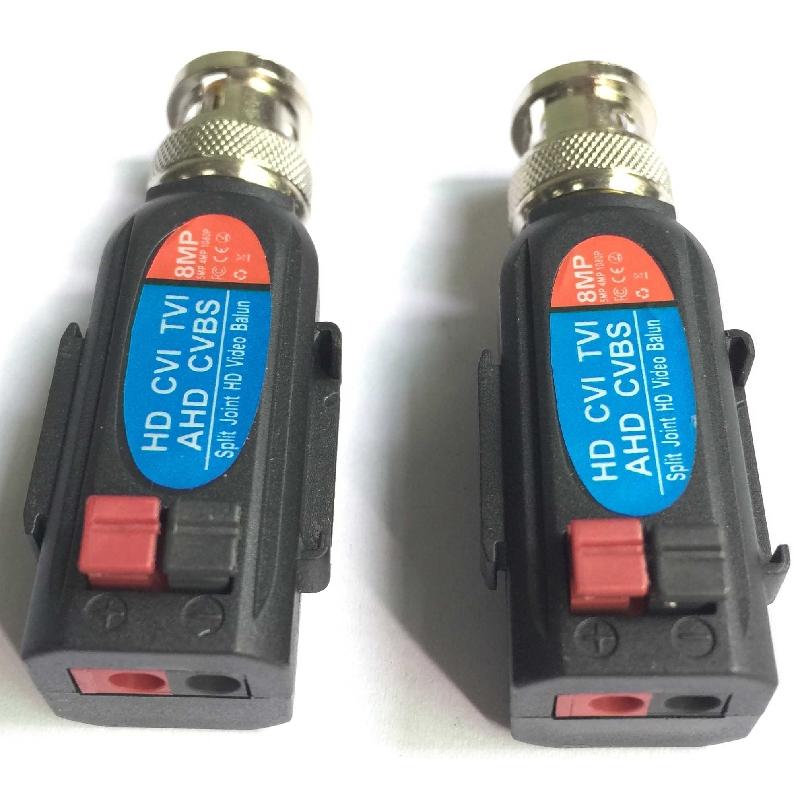

Passive HD-CVI/TVI/AHD Video Balun
New "Press-Fit" terminal block(screwless)
“U” shape Innovative connectable design
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras
Transmission distance:
CVBS----
Color video max up to 400m
HD-AHD----
720P: Color video max up to 350m,
1080P,4MP,5MP,8MP: Color video max up to 200m
HD-TVI----
720P,1080P: Color video max up to 250m,
4MP,5MP,8MP: Color video max up to 200m
HD-CVI----
720P: Color video max up to 400m,
1080P:Color video max up to 250m,
4MP,5MP,8MP: Color video max up to 200m
Wave Filter Design
60 dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing
