1000Mbps Automatic Identification POE Switch for 24V and 48V with 2 SFP Ports

Place of Origin:Zhejiang,China

Brand Name:Chinasky

Model Number:POE0802SFPB-3A

Certification：CE-LVD,CE-EMC, RoHS

Minimum Order Quantity:Negotiable

Packaging Details:Carton packing

Delivery Time:5-12 working days

Comply to POE IEEE 802.3af/at standard

Payment Terms:T/T, L/C, Paypal, Western Union, MoneyGram, Cash

8GE POE+1FE.

Model

POE0802SFPB-3A

Port

1000M POE

8

1000M SFP

2

Performance

Store and forward

Support（2.5M cache）

Exchange of content

20G

MAC address

8K

NEW function

Support AC/DC 2power in

Use environment

working temperature：0℃～40℃

Storage temperature：-40℃～70℃

Working humidity：10%～90% RHNot congealed

Storage humidity：5%～90% RHNot congealed

POEstandard

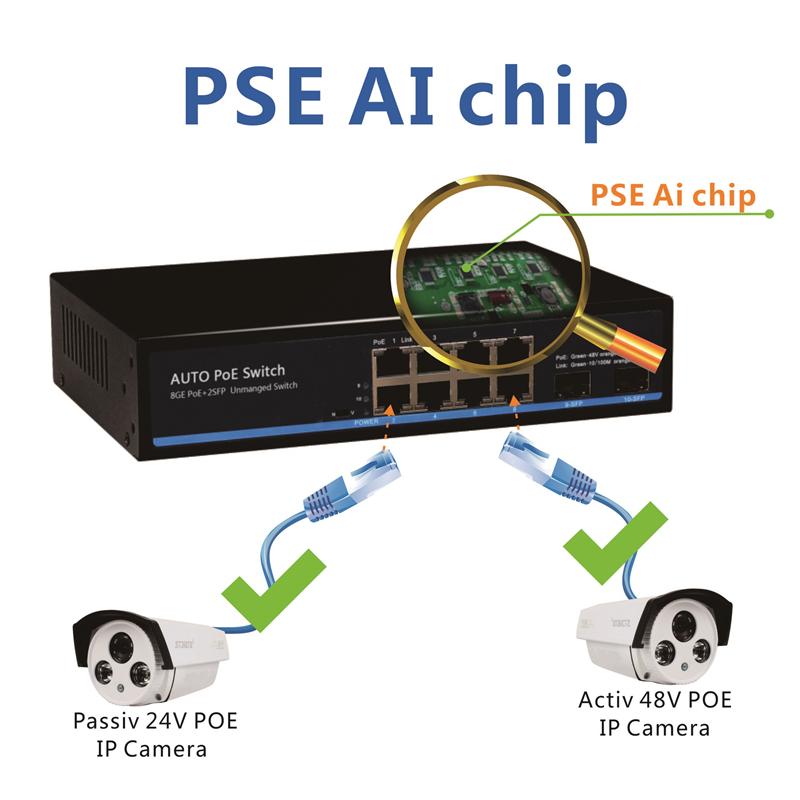

POE output adaptive：support both active and passive PD without setting

IEEE802.3af/at，1 port MAX 30W

Support 45+ 78- State PD Power，1 port MAX 30W

Support：overcurrent、shortcurrent、OverVOL、UnderVOL、power limitation、safe FunctionHipower PD star BOOT

Support after BOOT

Power in

DC in 48~57V OR AC in 100~265V 50/60HZ； MAX Power 150W

Protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X（Fiber）

IEEE 802.3af/at

IEEE 802.3x flow control

IEEE 802.1q VLANBridge operation

System mode

Standard /VLANisolation

Data transmission rate

Ethernet 10Mbps half duplex, 20Mbps full duplex

Fast Ethernet 100Mbps half duplex, 200Mbps full duplex

Gigabit Ethernet 2000Mbps full duplex

Network media

10Base-T:2 pairs of 3 classes（Cat3) OR UP UTP/STP(≤150m)

100Base-TX: 2 pairs of5 classes（Cat5）OR UP UTP/STP(≤150m）

1000Base-TX: 4 pairs of 6 classes（Cat5）OR UP UTP/STP(≤150m)

1000Base-SX:62.5μm/50μmMMF（2m~550m)

1000Base-LX:62.5μm/50μmMMF（2m~550m)OR10μmSMF（2m~5000m)

Physical specifications

Product SIZE：210mm*140mm*45mm（L*W*H）

Packaging SIZE：260mm*205mm*67mm(L*W*H)

1.3kg
