4CH CCTV Cat5 Power Video Data Combiner HD Balun (PVD304H)

  • 4CH CCTV Cat5 Power Video Data Combiner HD Balun (PVD304H)
  • 4CH CCTV Cat5 Power Video Data Combiner HD Balun (PVD304H)
Model No.︰PVD304H
Brand Name︰Chinasky
Country of Origin︰China
Minimum Order︰100 pc
Share on:

 Total 43 Related Items
Prev3233343536Next

Product Description

4ch CCTV Cat5 Power Video Data Combiner HD Balun (PVD304H)

Description:

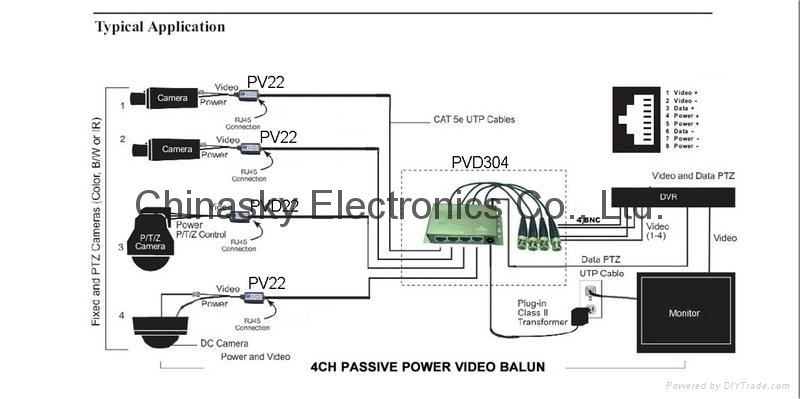

The Power Video Data Combiner Balun is passive transceiver device that combines video, PTZ data, and camera power over a single 4-pair UTP cable to simplify CCTV installations in a structured wiring environment. At the camera end the single channel PVD video balun combiner provides video, power and data on separate outputs.
The PVD304H series is designed to be installed at the control room. Each camera power output is equipped with a self-resetting fuse for extra protection. The PVD304 video connections are through BNC connectors and Coax cables to the DVR. The data connections to the DVR are through RJ45 and Category-5 cables.

Features:
1.      Combines video, power and data into a single RJ45 4-pair cable
2.      Compatible with all HD-CVI, HD-TVI, HD-AHD
3.      Up to 450m for 720P CVI Cameras
4.      Up to 250m for 1080P CVI Cameras
5.      Up to 200m for 720P/1080P TVI Cameras
6.      Up to 320m for 720P AHD cameras
7.      NTSC, PAL, and SECAM video formats
8.      No power required
9.      60dB cross talk and noise immunity.
10.   Compact size and easy installation
11.   Built-in transient suppression protection
12.   Outstanding interference rejection, transient protection
13.   Indicated LED lights
14.   Save cable cost 30%-50%
15.   Voltage of power: 12V~36V
16.   Power-Video signals are routed via UTP and RJ45. The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire


Technical specifications:


4ch CCTV Cat5 Power Video Data Combiner HD Balun (PVD304H)
Video Format NTSC, PAL , and SECAM
Frequency Response DC to 8MHz
Attenuation 0.5dB typ
CMRR 60 dB
Impedance Coax, Male BNC 75 ohms
RJ45/Terminal Block 100 ohms
Working environment Working Temperature   -10ºC to +70ºC
 Storage Temperature   -30ºC to +70ºC
Humidity  0 to 95%
Wire Type UTP5
Connector Female BNC, RJ45
Power 12V-36V
Case Metal
Dimension 85mm*47mm*25mm
Weight 0.22KGS

Wire Type
The PVD system operates well with Cats or better UTP wire,24 AWG(0.5mm) or thicker.
Low voltage camera power video may be sent within same wire bundle.
Do not use shielded twisted-pair wire.
Do not use un-twisted wire.
Do not run 24V/28VAC within same wire bundle with telecom or other datacom signals

Power-Distance Chart
Using PVD products, cameras can be powered at extended distances, please refer to the ctart below for more information.

Power Supply Voltage 24VAC 28VAC 13VDC
Resultant Camera Voltage 21VAC 21VAC 10VDC
100mA Camera 400m 800m 300m
300mA Camera 130m 260m 100m
500mA Camera 80m 160m 60m
1A Camera 40m 80m 30m


All RJ45 Connector follows industry-standard TIA/EIA 568B pinouts.
