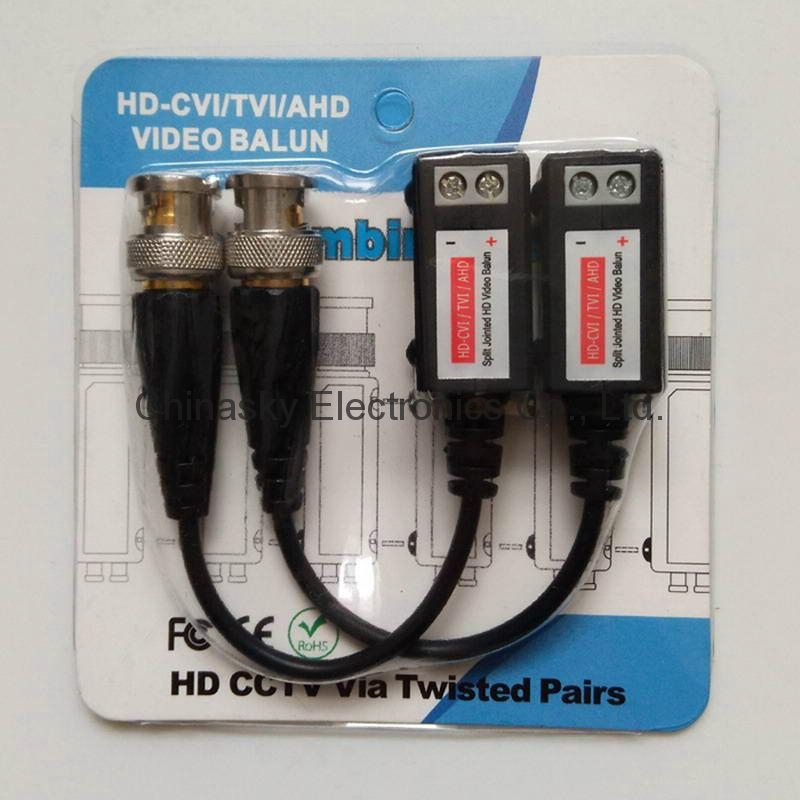

Combinable CCTV video balun, Single Channel Passive HD-CVI balun((VB105PH)
Features
Compatible with all HD-CVI, HD-TVI, HD-AHD
CVBS----Color video max up to 400m
HD-AHD----720P: Color video max up to 350m,
1080P,4MP,5MP,8MP: Color video max up to 200m
HD-TVI----720P,1080P: Color video max up to 250m,
4MP,5MP,8MP: Color video max up to 200m
HD-CVI----720P: Color video max up to 400m,
1080P:Color video max up to 250m,
4MP,5MP,8MP: Color video max up to 200m
NTSC, PAL, and SECAM video formats
No power required
60dB cross talk and noise immunity.
Compact size and easy installation
Built-in transient suppression protection
Innovative combinable design
Technical specifications:
|
Video Format
|
HD-CVI/TVI/AHD, NTSC, PAL, and SECAM
|
|
Frequency Response
|
DC to 60MHz
|
|
Attenuation
|
0.5dB typ
|
|
CMRR
|
60 dB
|
|
Surge protection
|
4KV
|
|
ESD
|
8KV
|
|
Impedance
|
Coax, Male BNC
|
75 ohms
|
|
Terminal Block
|
100 ohms
|
|
Working environment
|
Working Temperature
|
-10℃ to +50℃
|
|
Storage Temperature
|
-30℃ to +70℃
|
|
Humidity
|
0 to 95%
|
|
Wire Type
|
UTP5
|
|
UTP Connection
|
Terminal blocks
|
|
Power
|
No power required
|
|
Case
|
ABS Plastic
|
|
Dimension
|
33mm*17mm*16mm(excluding connectors)
|
|
Weight
|
50g/pair
|
